Economical Time Distribution From RAM

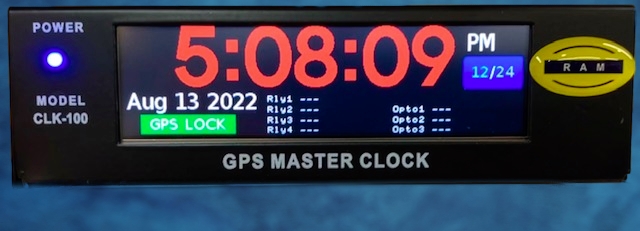

CLK-100 is a GPS-based master clock system

RAM Systems introduced its model CLK-100 to the broadcast market. It is designed to offer broadcast facilities an economical way to distribute accurate time and switching.

Balanced SMPTE serial time code is output on regular two-conductor shielded cable, with NTP output on an RJ-45 connector.

The local display uses large, bright digits viewable up to 25 feet. The display can be switched between 12- and 24-hour modes.

The CLK-100 is designed for installations where only digital time displays are needed. It is a desktop unit that also can be mounted onto a rack shelf.

Features include three Opto outputs, four form “C” relay outputs, GPS lock display, time and date display, and programmed date and time Relay/Opto switching.

The CLK-100 is 5-3/4 inches wide, 6-1/4 inches deep and 1-5/8 inches high. It has a sale price of $1,399.
