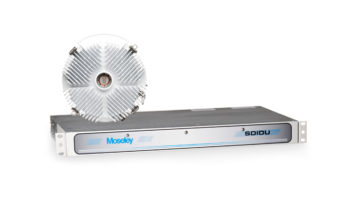

Moseley describes the NX-GEN-T as an economical advanced microwave STL/TSL software-defined frequency-agile digital radio for 6 GHz to 38 GHz bands.
It offers T1/E1, Gigabit Ethernet, 2 x OC3, DS3, NxDS3, add/drop MUX, OC3 interfaces. Modulation includes 4QAM, 16QAM, 32QAM, 64QAM, 128QAM, conforming to channel bandwidth and payload requirements along with ATPC, XPIC, Adaptive Modulation.
[Check Out More Products at Radio World’s Products Section]
The data rate is 155 Mbps to maximize payload capacity. A web browser interface provides for remote operation.
This carrier class product transports a programmable mix of native TDM and IP traffic separately, ensuring a seamless transition from legacy TDM networks to an all-IP network, the company says. An onboard “Add and Drop” multiplexer allows DS3/28DS1, SDH/63E1, add/drop operation. A QoS/Ethernet features deliver secure LAN/WLAN networks.
It is at home indoor or outdoor with an integrated package that can be directly mounted onto a pole or tower. Operational temperature range is –22 F/–30 C to 131 F/55 C.
Info: www.moseleysb.com
