The author is project manager with AEQ.
Luis Buñuel High School is in Móstoles, a city of just over 200,000, west of Madrid. It is a public training center that develops intermediate-and higher-level professional education, including specializations in media, TV and radio.

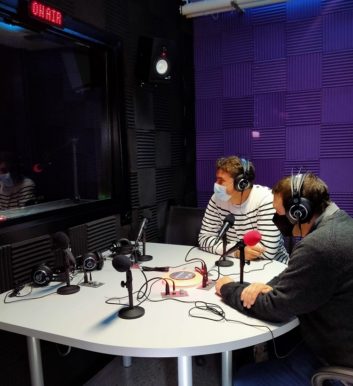

The school recently inaugurated a digital radio studio with AEQ technology including Capitol-IP digital audio mixer and attendant AEQ studio accessories.
The studio has five talent positions, professional radio automation software, a technical control position and the necessary equipment to produce radio programs in a professional way with professional material.
Several AEQ accessories were installed in the radio studio to make work easier.
These include the AEQ Studiobox, a signaling box that facilitates the interaction of the talent with the controller. Among other buttons, it has a mute or cough button.
There is also a button in the Buñuel radio Studioboxes, labeled “Tech,” a talkback control. With it, even in the middle of an on-air announcement, the user interrupts the on-air microphone to give instruction to the controller who listens through his monitors or headphones. In addition, the Studiobox’s unique ring will be green when the studio is ready to open microphones and red when the microphones are live on-air.
Also in the studio are AEQ HB 02 microphone panels. These provide connection of the microphone and the headphones of each user, and allow an individual control of the listening level in their headphones.
For AoIP interfacing, AEQ’s Netbox 4 MH allows connection to the audio network via IP, up to four input channels for microphone or analog lines and four output channels, for stereo headset and analog lines. Netbox 4 has GPIOs for signalling terminals such as Studiobox. It can be powered by PoE.
This device is responsible for connecting the studio microphones to the IP network, making it available not only in the control but also in any of the audio editing workstations for students to prepare their individual audio files to practice assembling news and interview summaries.
