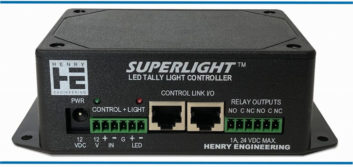

Henry Engineering’s SuperLight is a logic/control interface for controlling low-voltage studio tally lights. It can directly power 12 V DC LED tally lights that draw up to 500 mA. SuperLight includes a flasher circuit, as well as a DPDT relay output that can be used for any low voltage switching, speaker muting, or other utility use.
It is compatible with WheatNet Blade, Axia xNode and similar network protocols. Cat-5/Cat-6 interface can control multiple units using one cable.
The LED output can supply 12 VDC at up to 500 ma; it can also “sink” up to 2 amps if used with an external power source. The LED output can be set to “flash” when on for use with on-the-air warning lights. All control, relay output, and LED output connections are via plug-in Euroblock connectors. Two RJ45 connectors are also provided for control wiring compatibility with WheatNet-IP Blade and similar installations that use Cat-5/Cat-6 wiring.
